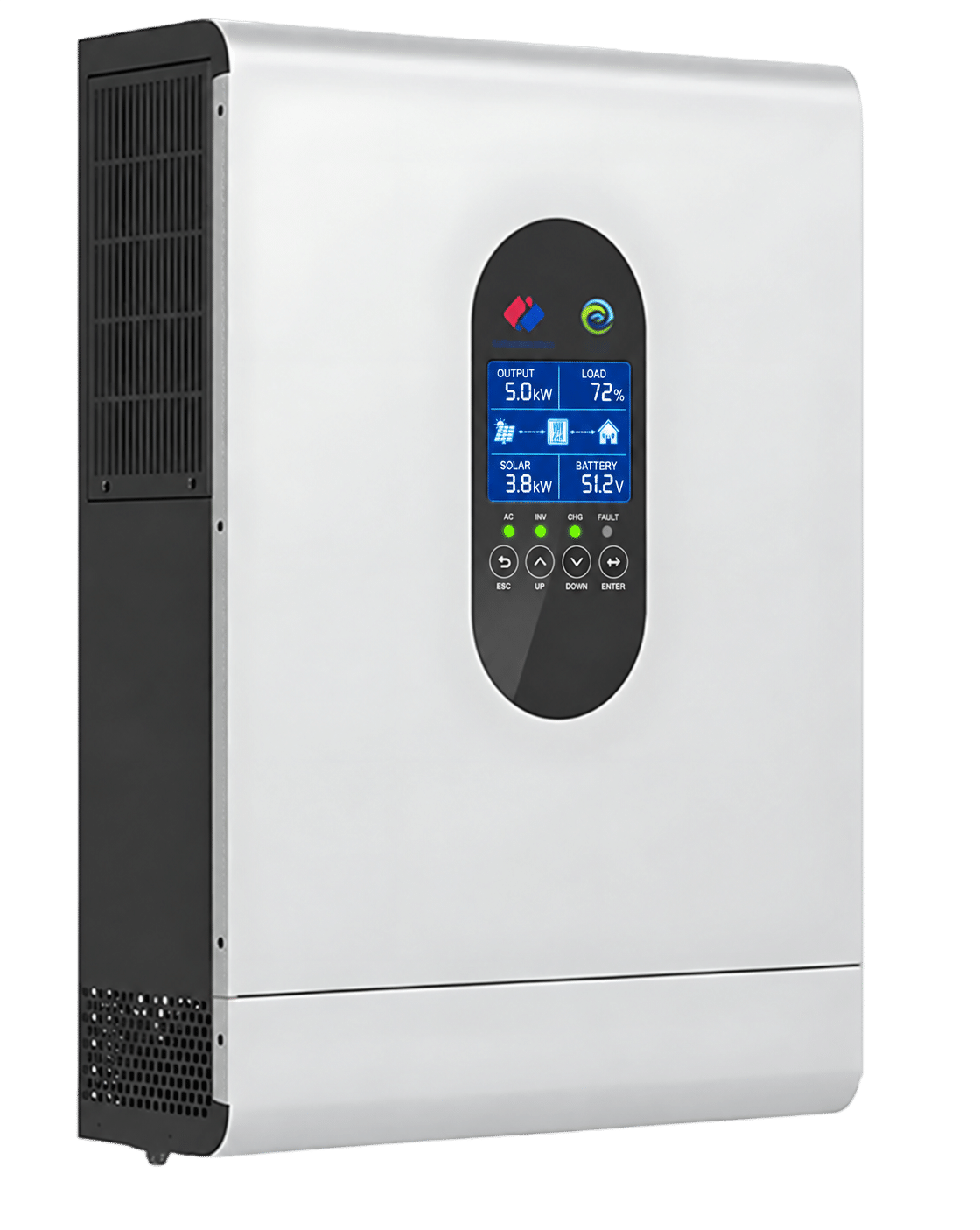

5kW / 48V Hybrid Solar Inverter (5000W) – Pure Sine Wave & Grid Feed-In
Take complete control of your power generation with the highly versatile 5kW / 48V Hybrid Solar Inverter. Designed for maximum efficiency and flexibility, this 5000W pure sine wave inverter serves as the ultimate brain for your residential or commercial solar system.
Whether you are building a fully off-grid setup, a grid-tied system with battery backup, or simply want to run loads directly from solar panels during the day, this compact, high-frequency inverter delivers clean, uninterrupted power exactly how you need it.
Key Features & Benefits (H2)
-
Batteryless Operation: Lower your initial setup costs. This inverter features the unique ability to function entirely without a battery connected, powering your loads directly from solar generation during the daytime.
-
True 5000W Output (1.0 Power Factor): Delivering a full 5000W of continuous power with a power factor of 1, ensuring you get maximum usable wattage to run heavy household appliances.
-
Wide High-Voltage MPPT: Featuring an MPPT range of 120V to 450V and a maximum of 500Voc, allowing you to string more solar panels together in series for easier wiring and earlier morning power generation.
-
Grid Blending & Feed-In: Intelligently manage your energy. The utility grid and solar panels can power your loads simultaneously. Plus, if permitted by your local utility, you can feed excess solar power back into the grid.
-
Flawless Battery Communication: Equipped with built-in CAN/RS485 ports, allowing for seamless, real-time BMS (Battery Management System) communication with modern 48V and 51.2V lithium batteries to ensure safe and optimized charging.
-
Clean, Safe Power: The Pure Sine Wave AC output mirrors utility grid power, ensuring that sensitive electronics, computers, and modern appliances run smoothly, coolly, and without audio hum or interference.
-
Compact & Remote-Ready: The advanced high-frequency design dramatically reduces the size and weight of the unit for easier wall-mounting. Optional WIFI/GPRS modules let you monitor your entire system’s performance remotely from your smartphone.
Technical Specifications (H2)
| Specification | Detail |
| Rated Output Power | 5000W |
| System Voltage | 48V |
| Power Factor | 1.0 |
| Waveform | Pure Sine Wave AC Output |
| MPPT Operating Range | 120V ~ 450V |
| Max PV Open Circuit Voltage (Voc) | 500V |
| Grid Interaction | Dual-power blending & Grid Feed-in capable |
| Batteryless Operation | Supported |
| BMS Communication | CAN / RS485 |
| Remote Monitoring | WIFI / GPRS (Optional) |
| Design Type | High-Frequency (Compact & Lightweight) |
