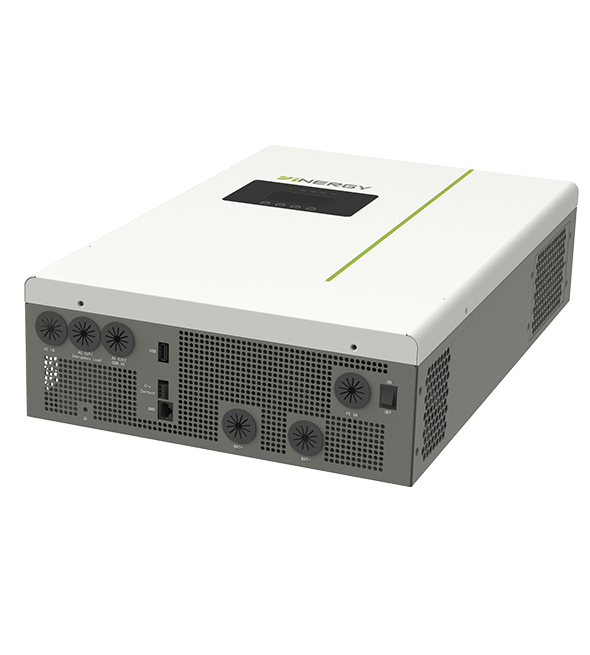

Yinergy OG-1P6K5-DT 6.5kW Off-Grid Hybrid Solar Inverter

Description

The Yinergy OG-1P6K5-DT 6.5kW is a heavy-duty off-grid and solar hybrid inverter built to power large homes, offices or small businesses with ease. It delivers up to 6500 W (8120 VA) of continuous output and supports high solar input for maximum energy harvest. Thanks to a wide MPPT range, strong surge capacity, and support for 48 V battery banks, it handles heavy appliances — from air conditioners and water pumps to refrigerators and work tools — without breaking a sweat. Rugged, efficient, and designed for tough conditions, OG-1P6K5-DT ensures stable, clean, fuel-free power for real-life needs.

• ✅ Rated output: 8120 VA / 6500 W — powerful enough for heavy appliances and multiple loads.

• ✅ Max PV (solar) input power: 9000 W — supports large solar panel arrays for better energy harvest.

• ✅ MPPT operating voltage range: 60–450 V DC — flexible for various PV configurations.

• ✅ Max PV open-circuit voltage: 500 V DC — allows long solar panel strings.

• ✅ Max solar input current: 28 A — enables strong charging from panels.

• ✅ 48 V (4 × 12 V) battery support (Lithium, Lead-acid, AGM, Gel) — flexible battery options for energy storage.

• ✅ AC output voltage: 208 / 220 / 230 / 240 VAC (L + N + PE) — compatible with standard home voltage in many regions.

• ✅ Wide AC input voltage range (170–280 V normal / 90–280 V appliance-mode) — tolerates unstable grid supply common in Nigeria and similar markets.

• ✅ Dual-output capacity: second output 4150 VA / 4150 W — for separating critical and non-critical loads.

• ✅ Surge / peak power (startup load) up to 16,000 VA — handles high startup loads like ACs, pumps, heavy motors.

• ✅ High efficiency: ~96.5% (PV → inverter), ~93.5% (battery → inverter) — efficient energy conversion for savings and performance.

• ✅ Fast charging (up to 120 A charging current) — ensures batteries recharge quickly when solar or grid is available.

• ✅ Support for parallel operation (up to 9 units 1P & 3P) — scalable for future expansion or larger systems.

• ✅ Built-in protection & monitoring (over-voltage, under-voltage, surge, battery protection, load separation) — keeps your appliances and inverter safe under variable conditions.
