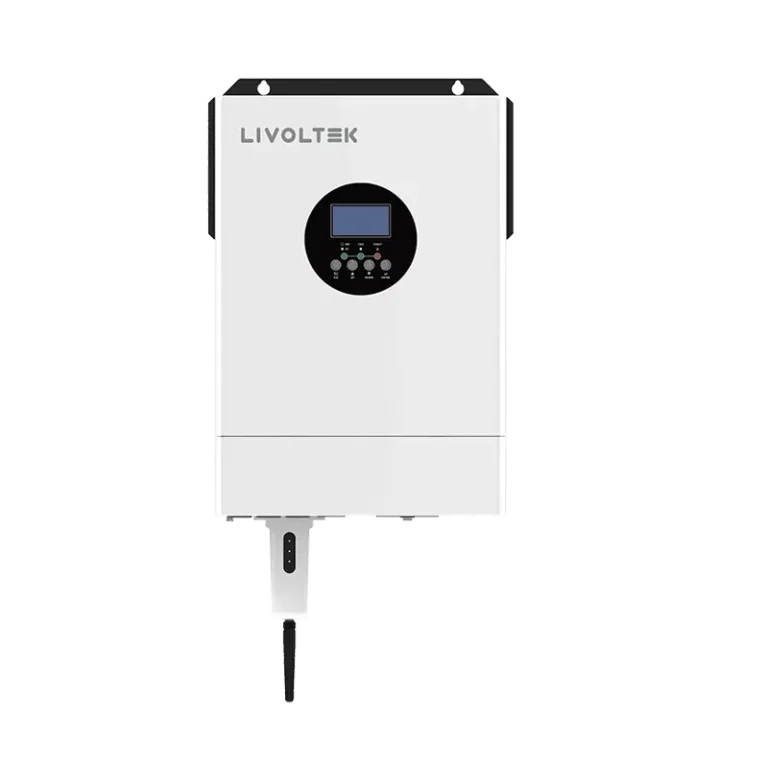

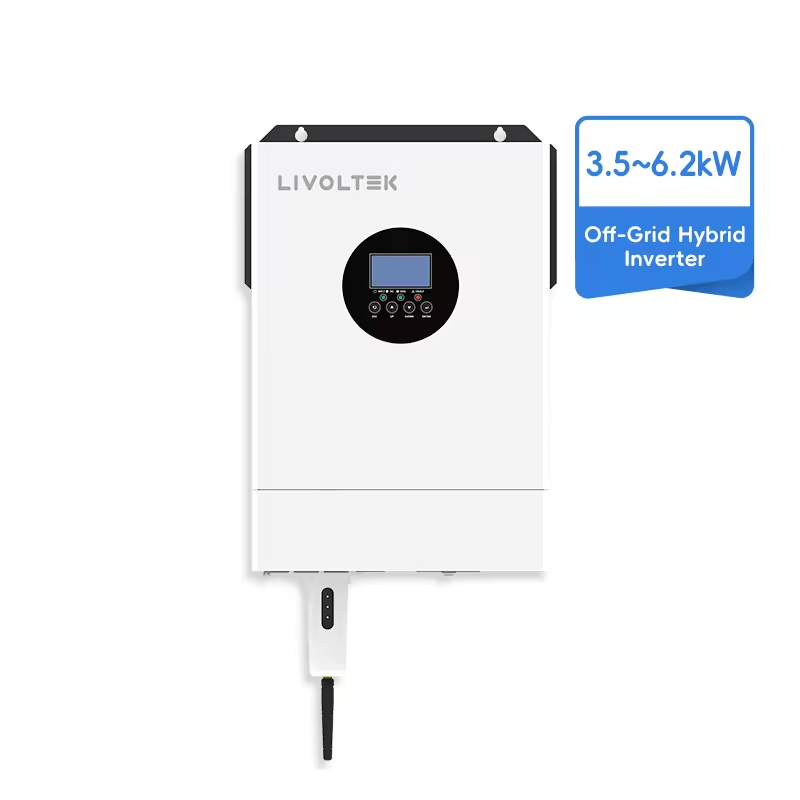

Livoltek 6.2 kW 48V 500VDC inverter parallel compactible

Description

The Livoltek 6.2 kW inverter is the perfect all‑in‑one solution for reliable solar power in your home or small business. Compatible with a 48 V battery system and high‑voltage solar panels (up to 500 V DC), it can run with or without batteries — giving you flexibility and resilience during power outages. Its built‑in MPPT solar charger maximizes solar energy harvest by efficiently converting up to 6500 Wp of PV power.

Thanks to its pure sine wave output, 220/230 V AC stability, and surge power of 12,400 VA, the unit reliably supports heavy loads like refrigerators, air conditioners, pumps, and sensitive electronics. With a maximum efficiency of 96%, dual output ports, and optional parallel configuration (up to 12 units), the Livoltek 6.2 kW inverter is scalable, compact, and easy to integrate into any solar setup.

This inverter delivers stable, clean energy — enabling energy independence, reduced electricity bills, and peace of mind even when the grid fails.

Key Features

✔ Power Output: 6.2 kVA / 6.2 kW continuous AC output
✔ Battery Compatibility: 48 V DC battery system
✔ Solar Input (PV):
 ✔ Maximum PV open-circuit voltage: 500 V DC
 ✔ MPPT voltage range: 60 V – 450 V DC
 ✔ Max PV array power: ~6500 Wp
 ✔ Max solar input current: 27 A
✔ Charger & Battery Management:
 ✔ Built-in MPPT solar charger + 80 A AC charger
 ✔ CC/CV charging method (constant current/voltage)
 ✔ Lithium battery support with RS485 / RS232 communication
 ✔ Floating charge voltage: 54 V DC; Overcharge protection: 63 V DC
✔ AC Output:
 ✔ Nominal voltage: 220/230 V AC ±5%
 ✔ Pure sine wave output for sensitive electronics
 ✔ Frequency: 50/60 Hz (auto-sensing)
 ✔ Transfer time: 10–20 ms (UPS-grade)
 ✔ Surge/peak power: ~12,400 VA
✔ System Flexibility & Scalability:
 ✔ Supports multiple output priority modes: Utility, Solar, Solar + Battery, Battery + Utility
 ✔ Parallel connection up to 6 units for larger loads or 3-phase setups
 ✔ Dual output ports for flexible battery management
✔ Efficiency & Reliability:
 ✔ PV → inverter efficiency up to 96%
 ✔ Battery → inverter efficiency ~93%
 ✔ Built-in protections: overload, overcharge, overvoltage, short-circuit
✔ Physical & Environmental Specs:
 ✔ Dimensions: ~438 × 295 × 105 mm
 ✔ Weight: ~8.7 kg (compact, wall-mountable)
 ✔ Operating temperature: –10 °C to +50 °C
 ✔ Communication: RS232 + RS485 (optional WiFi monitoring)
